ASI 9013 Baby Changing Station, Recessed-Mounted, Stainless Steel
✅ Durable Construction: Welded Type-304 stainless steel with a sleek satin finish.
✅ ADA Compliant: Meets all barrier-free accessibility and safety guidelines.
✅ Sanitary & Easy to Clean: FDA-approved, bacteria-resistant plastic surface
✅ One-Handed Operation: Pull handle and concealed spring for easy use while holding a child.
✅ Maximum Safety: Includes an adjustable two-part strap for infants up to 3.5 years old (up to 50 lbs).
✅ Robust Utility: Tested to support a 250 lb static load.
The ASI 9013 Recessed Mounted Baby Changing Station provides a safe, space-saving diapering solution for commercial restrooms. Engineered for heavy-use environments, the unit is built with a heavy-duty 16-gauge steel door and an 18-gauge steel cabinet and flange. The concave interior comfortably cradles the child, while two integrated bag hooks and built-in dispensers for bed liners and paper towels offer added convenience for parents.

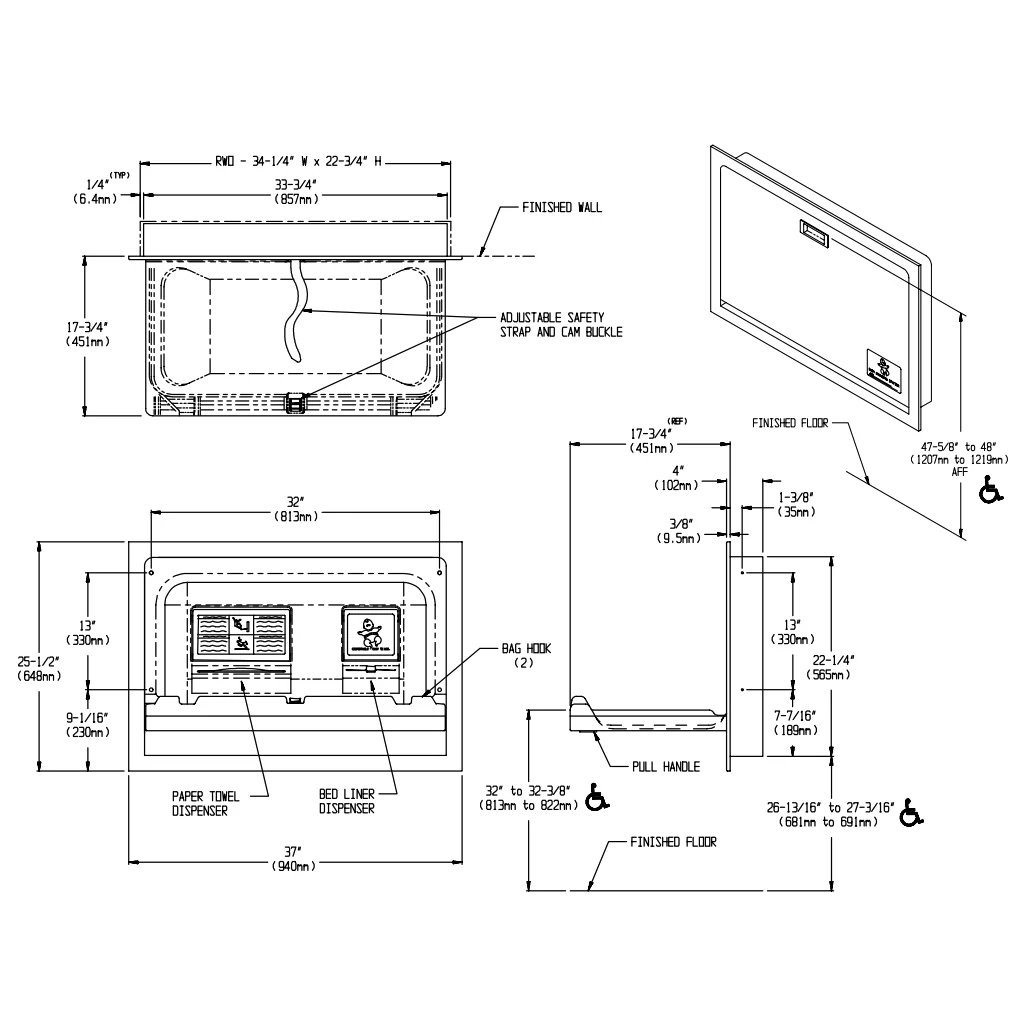

Installation Note: This recessed model requires a rough wall opening of 34-1/4″ W x 22-3/4″ H x 3-3/4″ D.
Dimensions
Open: 37″ x 25 1⁄2″ x 17 3⁄4″ (940 x 648 x 451 mm)
Closed: 37″ x 25 1⁄2″ x 3⁄8″ (940 x 648 x 10 mm)
Wall Opening: 34 1⁄4″ x 22 3⁄4″ x 3 3⁄4″ (870 x 578 x 95 mm)
Why Choose This Model?
The ASI 9013 is ASI's commercial-grade recessed stainless steel baby changing station—designed for facilities where a flush, built-in appearance is required and where type-304 stainless is specified throughout. ASTM F2285 compliant with a 250 lb static load rating, the 9013 suits schools, healthcare facilities, government buildings, and any project specifying ASI accessories across the restroom. As an ASI authorized distributor with a Low Price Guarantee, Total Restroom stocks the 9013 and ships the same business day.
Key Features & Applications
-
Recessed Installation: Fits within a standard wall cavity for a flush, architectural finish. Preferred on projects where surface-mounted units would protrude into limited floor space.
-
Type 304 Stainless Steel: Full stainless steel construction—durable, corrosion-resistant, and compatible with commercial cleaning chemicals used in daily restroom maintenance.
-
ASTM F2285 Compliant: 250 lb static load rating exceeds the code minimum by 2.5×. Safety belt and mechanism meet the standard's requirements.
-
Damped Gas Spring Mechanism: Smooth open and close action—reduces operational wear and maintains consistent function across years of high-traffic use.
-
Best For: Projects specifying ASI accessories throughout, recessed applications in schools, healthcare, and government facilities, and specification-driven construction projects.
Frequently Asked Questions
Q: Is a special rough opening required for the ASI 9013?
A: Yes. Like all recessed baby changers, the 9013 requires a wall cavity of appropriate depth and dimensions. Consult the tech data sheet (available on the product page) for exact rough-in dimensions before ordering.
Q: How does the ASI 9013 compare to the Bradley 962-00?
A: Both are recessed stainless steel changers at similar price points, both ASTM F2285 compliant. The ASI 9013 is the right call for projects already specifying ASI accessories; the Bradley 962-00 makes sense for Bradley-specified projects. Performance is comparable.
Q: Does Total Restroom offer a Low Price Guarantee on ASI products?
A: Yes—Total Restroom offers a Low Price Guarantee on all ASI products. Contact our team if you find a lower authorized price.
From the Manufacturer
ADA-compliant unit features welded stainless steel for long and reliable use. Exposed surfaces are satin finish. Easy one-handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two-part adjustable safety strap and tested static load capacity of up to 250 lbs assure child protection.

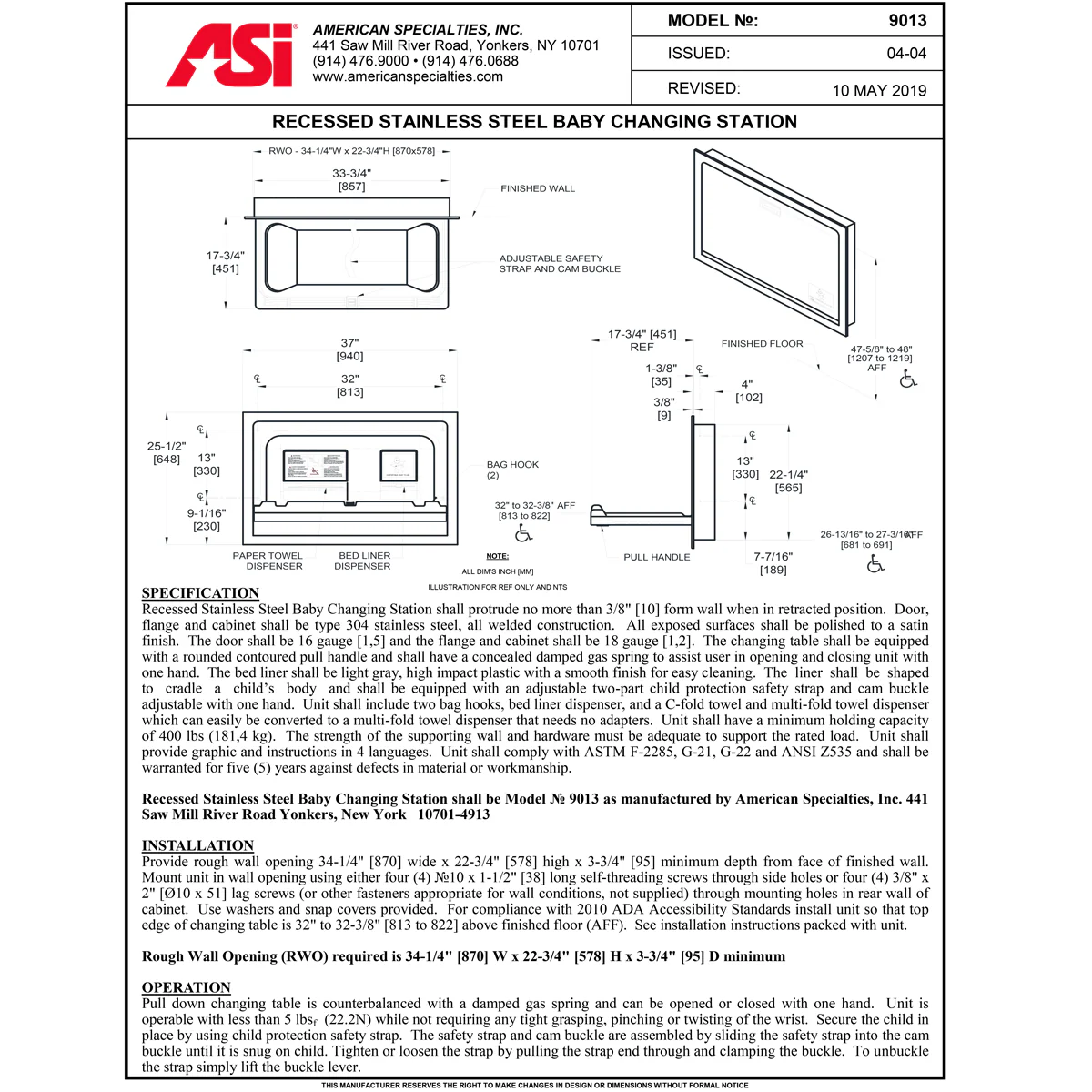

From the Tech Data
SPECIFICATION
Recessed Stainless Steel Baby Changing Station shall protrude no more than 3/8" [10] form wall when in retracted position. Door, flange and cabinet shall be type 304 stainless steel, all welded construction. All exposed surfaces shall be polished to a satin finish. The door shall be 16 gauge [1,5] and the flange and cabinet shall be 18 gauge [1,2]. The changing table shall be equipped with a rounded contoured pull handle and shall have a concealed damped gas spring to assist user in opening and closing unit with one hand. The bed liner shall be light gray, high impact plastic with a smooth finish for easy cleaning. The liner shall be shaped to cradle a child’s body and shall be equipped with an adjustable two-part child protection safety strap and cam buckle adjustable with one hand. Unit shall include two bag hooks, bed liner dispenser, and a C-fold towel and multi-fold towel dispenser which can easily be converted to a multi-fold towel dispenser that needs no adapters. Unit shall have a minimum holding capacity of 400 lbs (181,4 kg). The strength of the supporting wall and hardware must be adequate to support the rated load. Unit shall provide graphic and instructions in 4 languages. Unit shall comply with ASTM F-2285, G-21, G-22 and ANSI Z535 and shall be warranted for five (5) years against defects in material or workmanship.
Recessed Stainless Steel Baby Changing Station shall be Model № 9013 as manufactured by American Specialties, Inc. 441 Saw Mill River Road Yonkers, New York 10701-4913
INSTALLATION
Provide rough wall opening 34-1/4" [870] wide x 22-3/4" [578] high x 3-3/4" [95] minimum depth from face of finished wall. Mount unit in wall opening using either four (4) №10 x 1-1/2" [38] long self-threading screws through side holes or four (4) 3/8" x 2" [Ø10 x 51] lag screws (or other fasteners appropriate for wall conditions, not supplied) through mounting holes in rear wall of cabinet. Use washers and snap covers provided. For compliance with 2010 ADA Accessibility Standards install unit so that top edge of changing table is 32" to 32-3/8" [813 to 822] above finished floor (AFF). See installation instructions packed with unit.
Rough Wall Opening (RWO) required is 34-1/4" [870] W x 22-3/4" [578] H x 3-3/4" [95] D minimum
OPERATION
Pull down changing table is counterbalanced with a damped gas spring and can be opened or closed with one hand. Unit is operable with less than 5 lb sf (22.2N) while not requiring any tight grasping, pinching or twisting of the wrist. Secure the child in place by using child protection safety strap. The safety strap and cam buckle are assembled by sliding the safety strap into the cam buckle until it is snug on child. Tighten or loosen the strap by pulling the strap end through and clamping the buckle. To unbuckle the strap simply lift the buckle lever.
