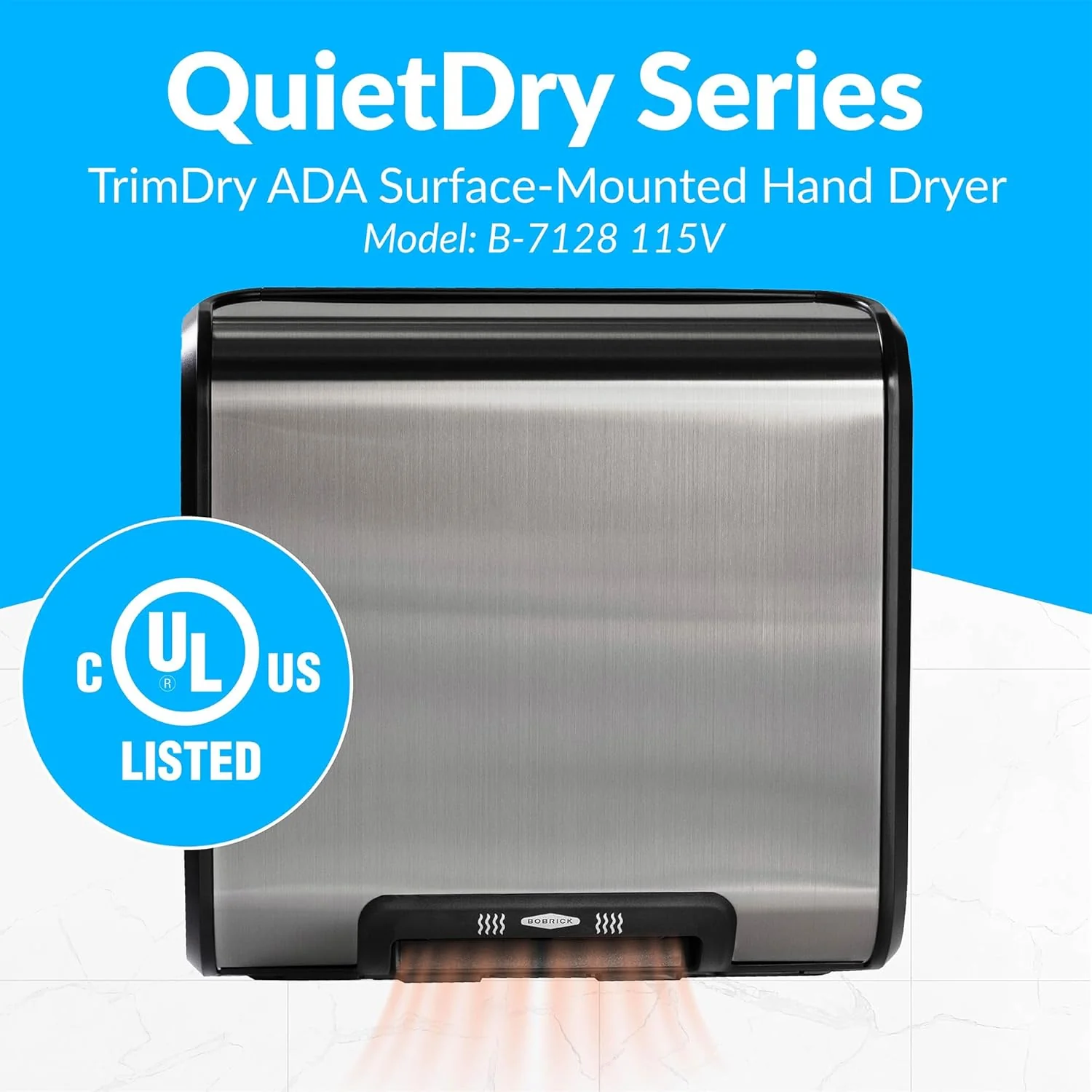

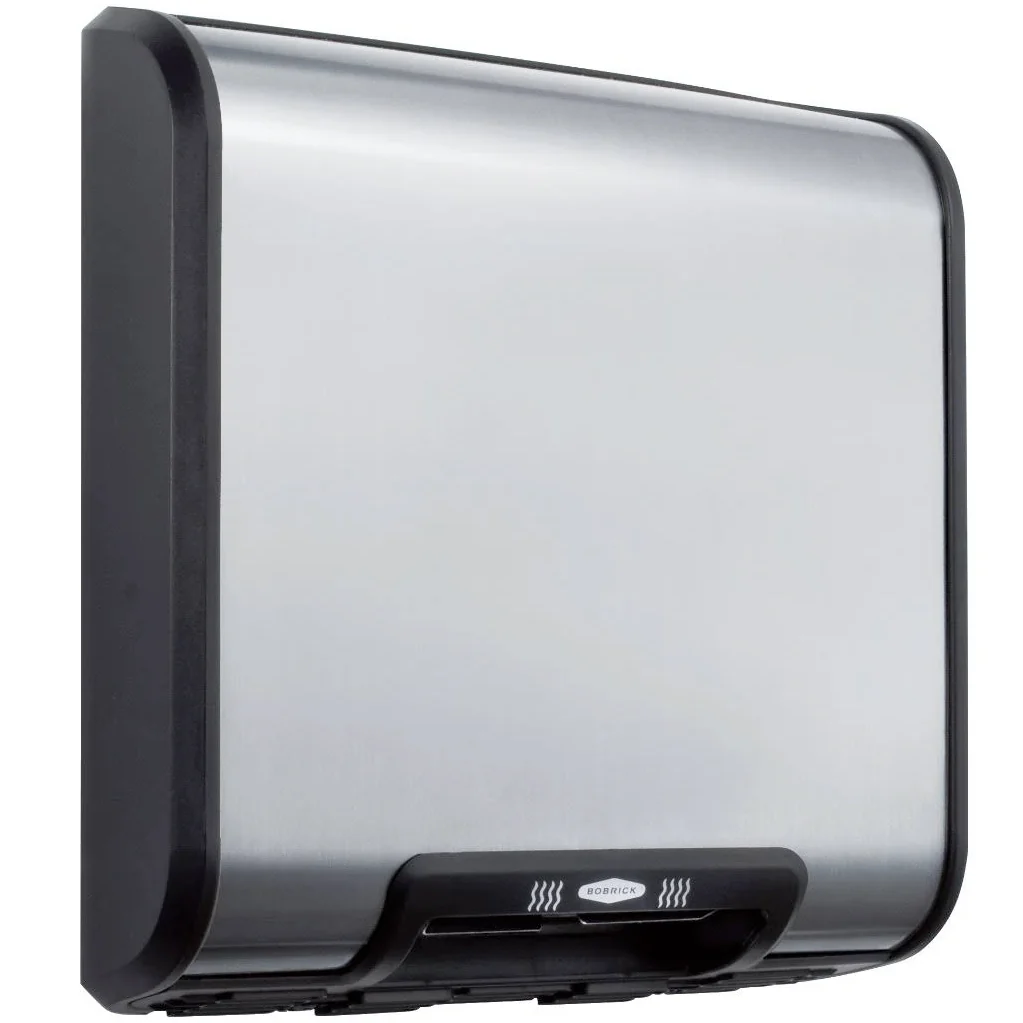

Bobrick B-7128 Automatic Hand Dryer, 115 Volt, Surface-Mounted, Stainless Steel
✅ Durable, 22-gauge, Type 304 satin-finish stainless steel cover with black plastic trim, automatic operation, dual air outletsÂ
✅ 115V AC, 15 Amp, 50/60 Hz, 1725 Watts, Single Phase, cULus Listed

Durable, 22-gauge, Type 304 satin-finish stainless steel cover with black plastic trim, automatic operation, dual air outlets. 115V AC, 15 Amp, 50/60 Hz, 1725 Watts, Single Phase, cULus Listed.
✅ Whisper-Quiet Operation
Bobrick's QuietDry TrimDry operates at a hushed 71 decibels, making it as quiet as a premium dishwasher, for a disturbance-free washroom environment.
✅ Eco-Friendly Savings
Eliminate the ongoing expense of paper towels and reduce maintenance with this energy-efficient drying solution.
✅ Rapid & Even Drying
Dual air outlets and heating elements ensure a fast, even, and pleasant hand-drying experience without hot spots for your patrons.
✅ Robust & Touch Free
The Type-304 stainless steel construction and touch-free sensor activation offer a durable, hygienic hand-drying option suitable for high-traffic restrooms.
✅ Accessibility for All
Meets ADA Standards for Accessible Design, ensuring usability for every patron without the need for additional space.

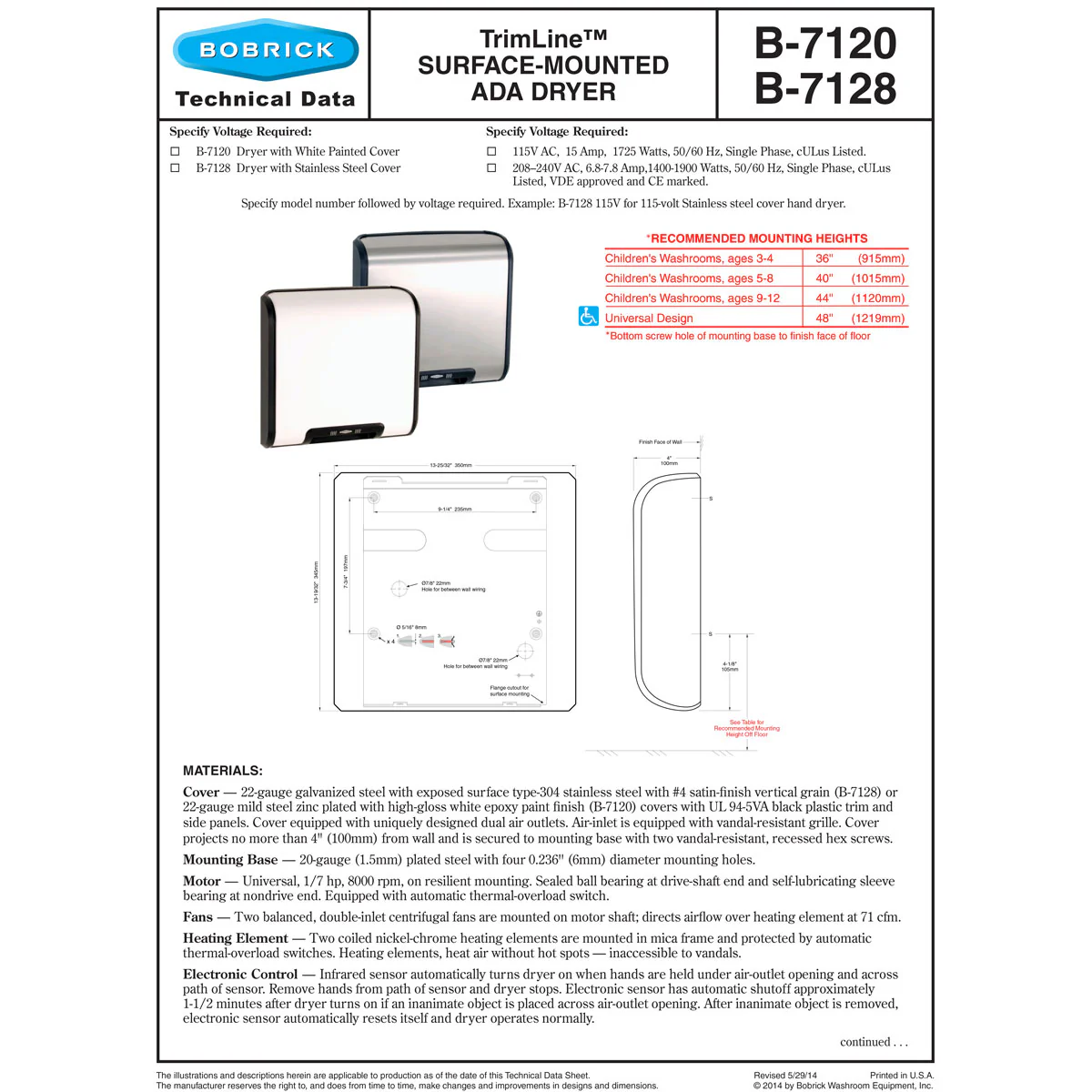

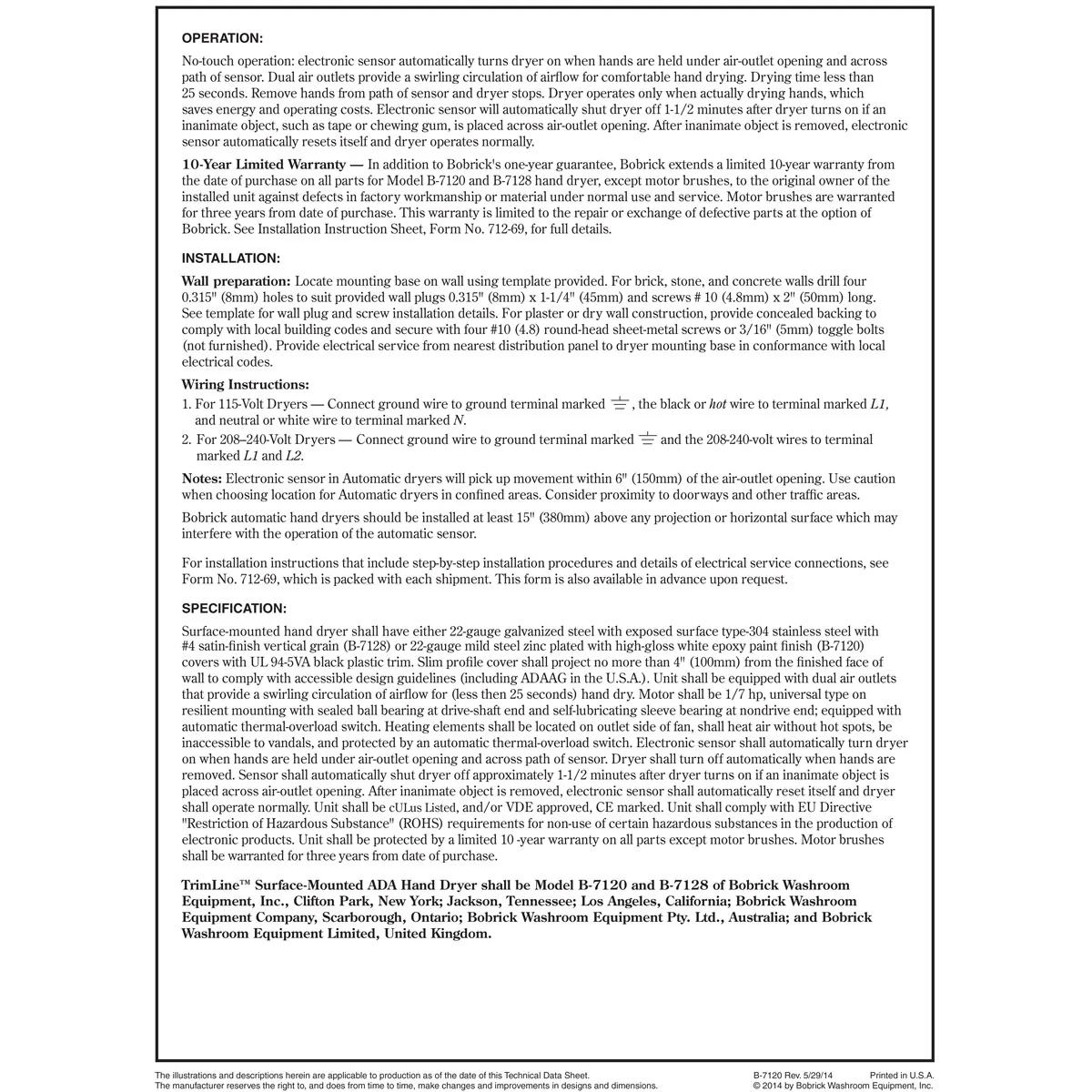

From the Tech Data
MATERIALS:

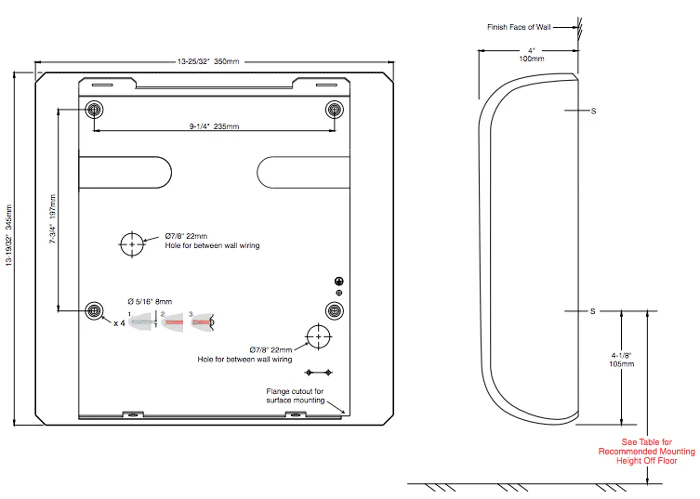

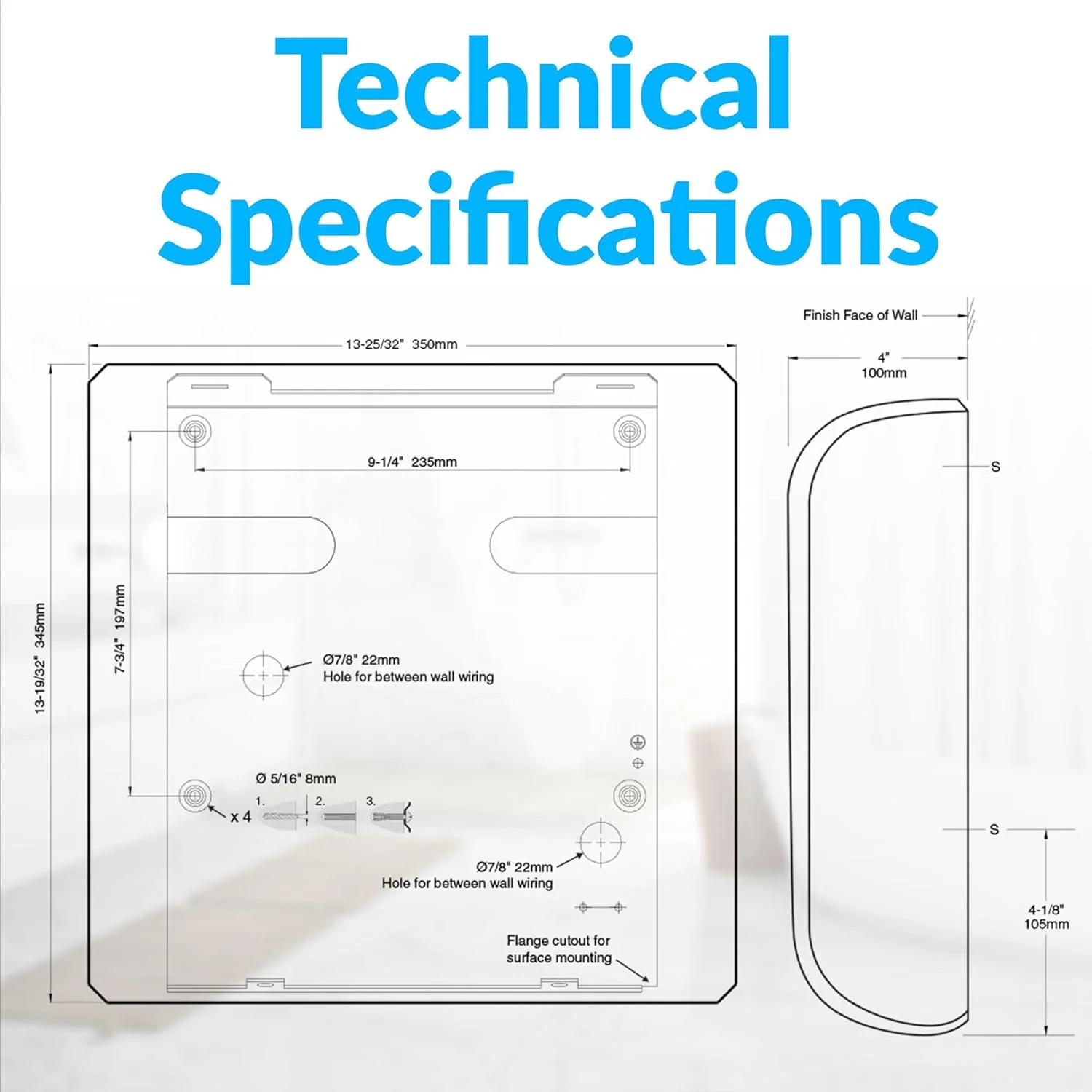

Cover — 22-gauge galvanized steel with exposed surface type-304 stainless steel with #4 satin-finish vertical grain (B-7128) or 22-gauge mild steel zinc plated with high-gloss white epoxy paint finish (B-7120) covers with UL 94-5VA black plastic trim and side panels. Cover equipped with uniquely designed dual air outlets. Air-inlet is equipped with vandal-resistant grille. Cover projects no more than 4" (100mm) from wall and is secured to mounting base with two vandal-resistant, recessed hex screws.
Mounting Base — 20-gauge (1.5mm) plated steel with four 0.236'' (6mm) diameter mounting holes.
Motor — Universal, 1/7 hp, 8000 rpm, on resilient mounting. Sealed ball bearing at drive-shaft end and self-lubricating sleeve bearing at nondrive end. Equipped with automatic thermal-overload switch.
Fans — Two balanced, double-inlet centrifugal fans are mounted on motor shaft; directs airflow over heating element at 71 cfm.
Heating Element — Two coiled nickel-chrome heating elements are mounted in mica frame and protected by automatic thermal-overload switches. Heating elements, heat air without hot spots — inaccessible to vandals.
Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally
OPERATION:
No-touch operation: electronic sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Dual air outlets provide a swirling circulation of airflow for comfortable hand drying. Drying time less than 25 seconds. Remove hands from path of sensor and dryer stops. Dryer operates only when actually drying hands, which saves energy and operating costs. Electronic sensor will automatically shut dryer off 1-1/2 minutes after dryer turns on if an inanimate object, such as tape or chewing gum, is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally
